Welcome to the My-Gcom Manager Portal

DTS Security Products has provided Gcom500 users with a completely free of charge web based My-Gcom Access Control Management portal for Town House complex, Guest House and small Hotel applications. Up to 500 Permanent and Temporary Access telephone numbers can be date, time and profile managed together with a flexible cross platform data file import / export facility.

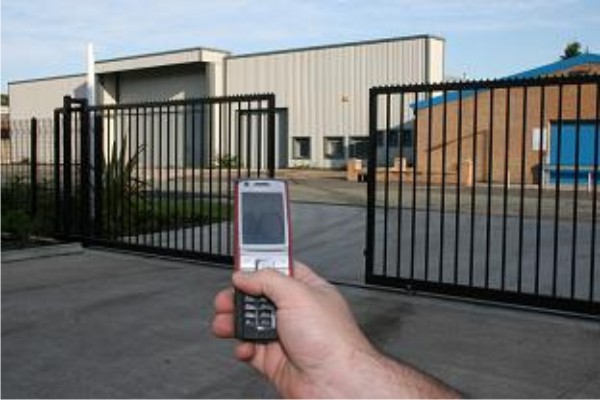

  • Access Control

    For factories or townhouse complexes - Using the My_Gcom portal the Gcom controller can be programmed with up to 500 user numbers with individual access time profiles. Access is provided by using free missed calls.

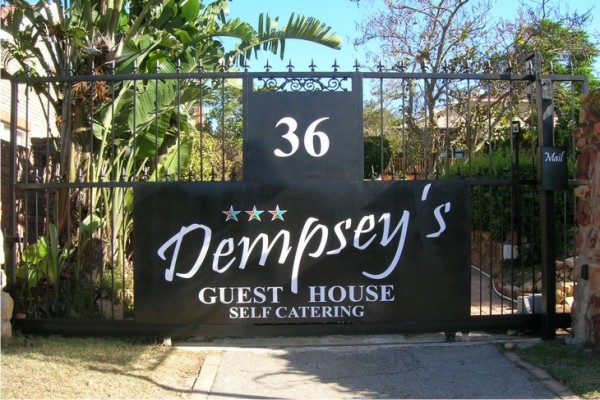

  • Guest Access

    The Guest Access Management application will provide secure access control for small hotels and guest houses. Guest access can be programmed by entering the guest’s name & phone number + arrival and departure dates.

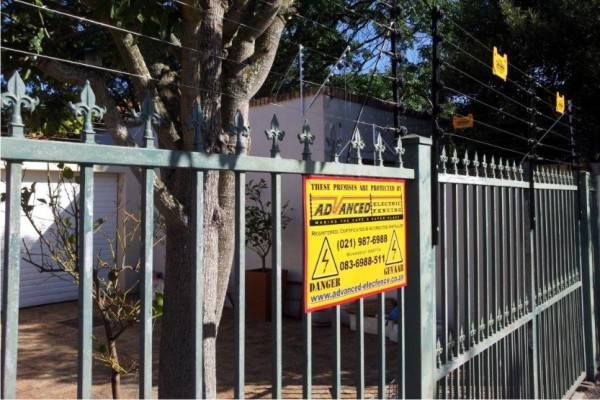

  • Electric Fence

    Remote control and monitoring of electric fence energizers or general alarm systems. Use the SMS relay control to arm and dis-arm the system and the Gcom’s input to monitor and provide customised SMS alarm messages to up to 6 recipients.

  • Tank Management

    The Gcom module together with suitable level sensing switches can provide level indication of remote storage tanks. In addition, the Gcom’s output relays can be wired to switch on or off pumps, heaters or similar devices by SMS commands.

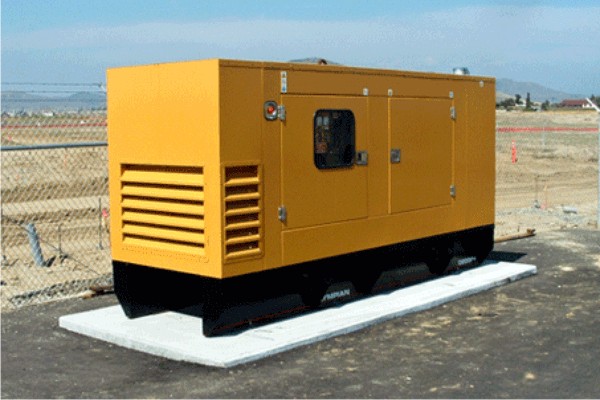

  • Generator Monitor

    Monitor standby generators for low fuel or battery levels. Alternatively use the Gcom as a perimeter or tamper alarm and prevent fuel theft.

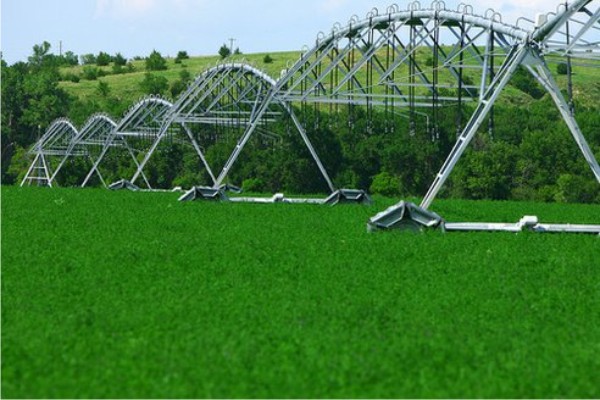

  • Farm Automation

    Remote on off control and monitoring of general farm systems. Switch pumps on and off with SMS commands and monitor water high or low levels. For irrigation systems the Gcom520 can be configured with repeating time of day on and off times.

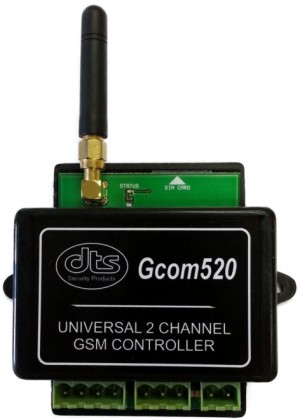

Gcom520 Controller

Application Examples - A step closer to the Internet of Things

Simple to Setup

  • Intuitive configuration using SMS instructions or internet portal

  • Automatic data transfer from Cloud to device and device to Cloud

  • User configurable Commands and Alarms



Main Features

  • Stores over 500 telephone numbers for access control applications

  • Permanent, day or time limited access (ideal for Guest Houses)

  • Automatic time setting from the Gcom time server

  • Configuration parameters and user data updated by SMS or the internet portal

  • 2 output relays + 2 optically isolated inputs

  • Status and remaining airtime reporting

  • 7 day activity log reporting

  • Compatible with most GSM networks (dual band)

  • Operates from a 8 to 32VDC supply (battery backup recommended)
